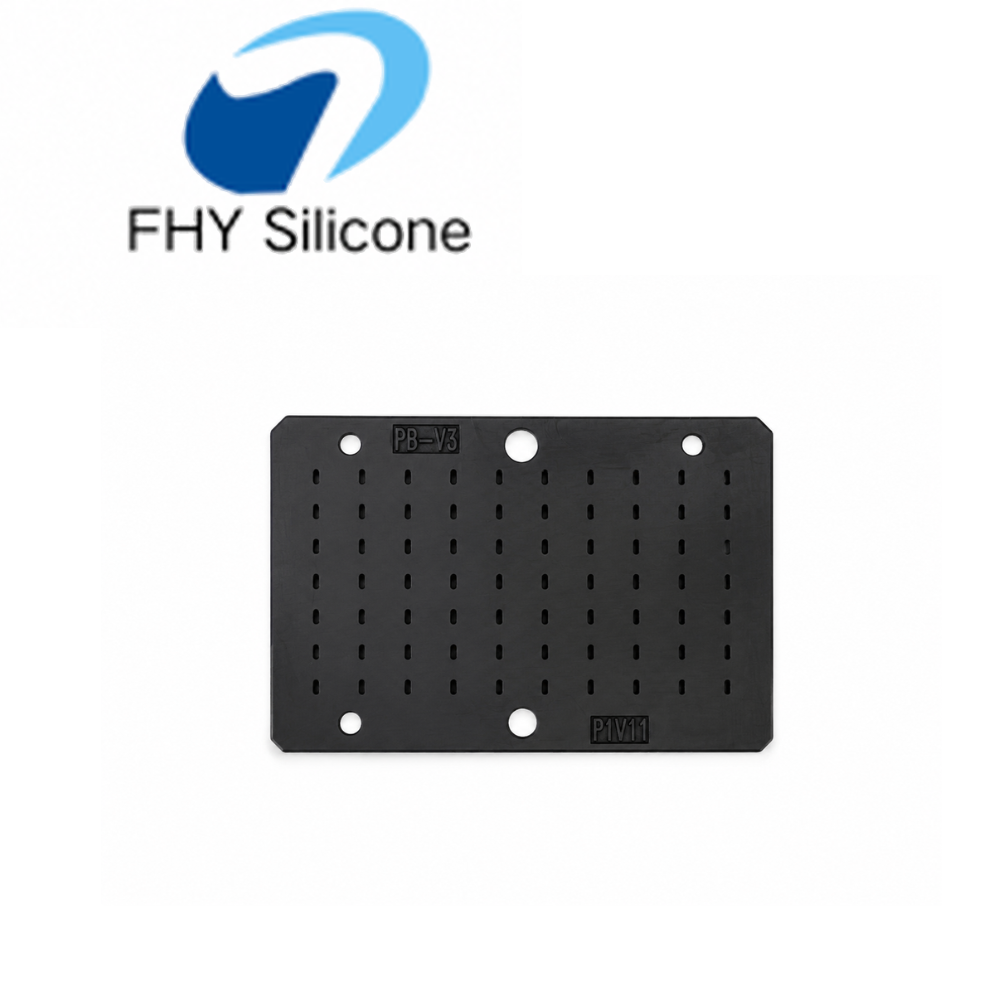

Custom Multi-Hole Silicone Sealing Sheet – Flexible Perforated Silicone Gasket for Sealing, Positioning and Cushioning

The Multi-Hole Silicone Sealing Sheet is a custom-molded silicone component designed for applications requiring sealing, positioning, cushioning and component separation within a single structure. It features multiple precisely arranged holes or slots that can correspond with screws, pins, wires, tubes, connectors, airflow channels or other assembly parts. The product can be customized according to the customer’s equipment structure, installation position and functional requirements.

Manufactured from flexible silicone rubber, this perforated sealing sheet provides a soft contact surface between assembled components. When properly compressed, it can help reduce gaps and protect internal areas against dust, moisture, vibration and mechanical contact. Its integrated multi-hole design also simplifies installation because several functional openings can be produced within one complete gasket rather than using multiple individual sealing parts.

Customized Multi-Hole Structure

The number, shape, diameter and position of the holes can be customized according to the supplied drawing or physical sample. Available designs include round holes, oval holes, rectangular slots, narrow slits and irregular openings. Different types of openings can also be combined on the same silicone sheet to meet complex assembly requirements.

Mounting holes can be added for screws, bolts, pins or locating posts. Smaller holes and slots may be used for wires, tubes, electronic connectors, ventilation or component positioning. The spacing between openings, edge distance and overall gasket dimensions can be adjusted to match the corresponding enclosure, panel or mechanical assembly.

A properly designed hole layout helps improve assembly accuracy and reduces the risk of component misalignment. It may also make installation faster by allowing workers to position the complete sealing sheet in one step.

Flexible Sealing and Cushioning Performance

Silicone rubber is known for its flexibility, elasticity and recovery properties. When the sealing sheet is compressed between two surfaces, the material conforms to minor surface irregularities and creates close contact around the installation area. This can help reduce the entry of dust, moisture and other contaminants.

In addition to sealing, the silicone sheet can function as a cushioning or isolation layer. It may reduce direct contact between rigid components, absorb part of the vibration produced during operation and minimize friction-related noise. These characteristics make it suitable for equipment containing sensitive electronic, mechanical or structural parts.

Actual sealing performance depends on the complete assembly design, including the gasket thickness, silicone hardness, compression ratio, hole structure, surface flatness and fastening force. If the finished product must comply with a specific waterproof or dustproof rating, testing should be performed after installation under actual operating conditions.

Durable Silicone Material

The multi-hole sealing sheet is produced from silicone rubber selected according to the intended application. Silicone offers good resistance to temperature changes, ozone, UV exposure, weathering and long-term aging. It can maintain flexibility under a wide range of environmental conditions, making it suitable for many indoor and outdoor applications.

Different silicone hardness levels are available. Softer silicone can conform more easily to uneven surfaces and provide gentle cushioning, while higher-hardness material can offer greater shape stability and support. The appropriate hardness should be determined according to the required compression, load, installation method and operating environment.

The working temperature range depends on the specific silicone formulation, product structure and application conditions. Chemical compatibility must also be evaluated if the gasket will contact oils, fuels, cleaning agents, acids, alkalis or other substances. Customers are encouraged to provide complete operating information before material selection.

Custom Sizes, Colors and Specifications

We provide customized production based on 2D drawings, 3D files, physical samples or detailed dimensional information. Custom options include:

• Overall length, width and thickness
• Number and arrangement of holes
• Round, oval, rectangular or irregular openings
• Custom hole diameter and slot dimensions
• Different edge and corner designs
• Multiple silicone hardness levels
• Smooth, matte or textured surfaces
• Custom colors and Pantone color matching
• Molded logos, part numbers or identification marks
• Industrial or food-contact silicone options
• Prototype sampling and mass production

Common colors include black, white, gray, red, blue and translucent. Other colors can be developed according to a supplied Pantone number or approved sample. Logos, model numbers, direction marks and assembly references may also be molded onto the surface when the structure permits.

For applications requiring food-contact suitability, electrical insulation, flame resistance or other specialized performance, the corresponding material and testing requirements should be confirmed before production.

Typical Applications

Multi-hole silicone sealing sheets can be used in electronic equipment, electrical enclosures, control panels, battery systems, communication devices, automotive components, sensors, household appliances, lighting products, industrial machinery, medical-device housings and mechanical assemblies.

The product is particularly useful in equipment that contains multiple mounting points or regularly arranged components. It can serve as a sealing gasket, positioning plate, cushioning pad, protective separator, insulating layer or vibration-reducing component, depending on the selected material and structural design.

OEM and ODM Manufacturing Service

We support custom tooling, prototype development, small-batch trial production and long-term volume orders. During production, inspection items may include overall dimensions, hole position, hole size, thickness, silicone hardness, surface appearance, flexibility and packaging.

For an accurate quotation, please provide the product drawing or sample, dimensions, hole arrangement, silicone hardness, color, required quantity, operating temperature, contact medium and applicable testing standards. Information about the mounting surface, compression force and intended function is also helpful for evaluating the design.

Our custom Multi-Hole Silicone Sealing Sheet provides a practical solution for projects requiring accurate hole positioning, flexible sealing, cushioning and component protection. Contact us to request a sample, discuss your technical requirements or receive a customized quotation.
