LSR vs HCR Silicone: Which Molding Process Is Better for Your Custom Product?

When developing a custom silicone product, one of the most important manufacturing decisions is choosing the right molding process.

Two of the most common options are:

• Liquid Silicone Rubber, or LSR
• High Consistency Rubber, or HCR

Both materials are silicone elastomers, but they behave very differently during processing.

LSR is a low-viscosity liquid material that is usually processed by injection molding.

HCR is a high-viscosity solid silicone rubber that is commonly processed by compression molding, transfer molding, or conventional rubber injection molding.

The right choice depends on the product design, production volume, tolerance, application, material requirements, and total project cost.

This guide compares LSR and HCR from an engineering and purchasing perspective to help you choose the most suitable process for your custom silicone product.

1. What Is LSR?

LSR stands for Liquid Silicone Rubber.

It is normally supplied as a two-part liquid system.

The two components are mixed at a controlled ratio and injected into a heated mold, where the silicone cures into the final part.

Because LSR has very low viscosity, it can flow into small cavities and fine features.

This makes it suitable for precision components with complex geometry.

Typical LSR applications include:

• 의료용 실리콘 부품
• 유아 수유 용품
• 실리콘 밸브
• 방수 씰
• 자동차용 커넥터
• 전자 부품
• Precision gaskets
• 실리콘 오버몰딩
• Thin-wall silicone parts

LSR is widely used in industries where repeatability, cleanliness, and automated production are important.

2. What Is HCR?

HCR stands for High Consistency Rubber.

It is also commonly called high consistency silicone rubber or solid silicone rubber.

Unlike LSR, HCR has a thick, gum-like consistency before molding.

It usually requires mechanical mixing and preforming before being placed into the mold.

HCR is commonly processed through:

• 압축 성형
• 전사 성형
• Rubber injection molding
• Extrusion

Typical HCR applications include:

• Silicone gaskets
• 실리콘 패드
• Kitchen products
• 산업용 씰
• Silicone covers
• Silicone mats
• 소비자 제품
• 실리콘 튜브
• General-purpose molded silicone parts

HCR is widely used because of its flexible processing options and relatively economical tooling.

3. LSR vs HCR: Main Difference

The biggest difference between LSR and HCR is how the material is processed.

LSR is liquid and is generally injected into a closed mold.

HCR is solid or semi-solid and is generally loaded into a mold as a preformed piece of material.

이러한 차이는 다음 사항에 영향을 미칩니다:

• 공구 설계
• 생산 속도
• Labor cost
• 자동화
• Part precision
• 제품의 복잡성
• 플래시 제어
• 생산량
• 단가

For this reason, the correct process should be selected during the early design stage.

4. Material Flow and Product Complexity

LSR has very low viscosity.

This allows the material to flow into small channels, thin walls, micro-features, and complex cavities.

LSR is therefore particularly suitable for products that contain:

• 얇은 벽
• Fine details
• Small holes
• Complex sealing features
• Microstructures
• Narrow flow paths

HCR has higher viscosity.

It does not flow as easily into very small features.

However, HCR performs well for many medium and large silicone products with relatively simple geometry.

If your product has very fine details or complex internal structures, LSR may offer better molding performance.

5. Tooling Cost

Tooling cost is one of the most important differences between LSR and HCR.

LSR Tooling

LSR molds are usually more complex.

다음과 같은 사항이 필요할 수 있습니다:

• Precision mold machining
• Cold runner systems
• Accurate temperature control
• 진공 시스템
• Precision venting
• Automated demolding
• Tight mold alignment

As a result, LSR tooling normally requires a higher upfront investment.

HCR Tooling

Compression molds for HCR are generally simpler.

The mold structure may be easier to design and manufacture.

This usually results in a lower initial mold cost.

For small production quantities or simple products, HCR can therefore be more economical.

6. Production Volume

Production volume is another major factor.

LSR is particularly suitable for medium- and high-volume production.

Because LSR molding can be highly automated, the process can achieve:

• Short cycle times
• 자동 재료 공급
• Automatic molding
• 자동 탈형
• Lower labor requirements

For large-volume projects, the higher tooling cost can often be offset by lower unit production costs.

HCR molding typically requires more manual operations.

These may include:

• Material cutting
• Preforming
• Mold loading
• 탈형
• 플래시 트리밍

For lower-volume projects, this may still be economical because the initial tooling cost is lower.

7. Labor Cost

LSR production can be highly automated.

Once the process is established, operators may only need to monitor the molding system and perform inspection.

This reduces labor cost per piece.

HCR compression molding often requires more manual handling.

Workers may need to:

• Weigh material
• Cut silicone
• Place material into the mold
• Remove molded parts
• Trim flash

As labor costs increase, automation becomes more important.

For high-volume production, LSR often provides better long-term cost efficiency.

8. Precision and Tolerance

LSR injection molding offers excellent process consistency when the mold and process parameters are properly controlled.

It is suitable for precision applications where repeatability is important.

예를 들면 다음과 같습니다:

• 의료용 밸브
• 전자 봉인
• 자동차용 커넥터 씰
• Precision diaphragms
• Small silicone components

HCR can also achieve good dimensional control.

However, because more manual steps may be involved, process variation may be slightly higher.

For products with critical dimensions, the manufacturer should review:

• Silicone shrinkage
• 제품 형상
• 벽 두께
• 이음선
• 금형 구조
• 측정 방법

Tolerance should always be defined based on functional requirements rather than applying unnecessarily tight tolerances to every dimension.

9. Flash Control

Flash is excess material that forms around the mold parting line.

LSR molds can achieve very small flash when designed and machined correctly.

Precision mold alignment and controlled injection help reduce flash formation.

This is particularly important for:

• 의료용 부품
• Small valves
• 밀봉 제품
• 전자 부품

HCR compression molding generally produces more visible flash.

Additional trimming may therefore be required.

For products where appearance or sealing performance is critical, flash requirements should be specified during the RFQ stage.

10. Surface Quality

Both LSR and HCR can produce high-quality surfaces.

The final appearance depends mainly on:

• Mold surface finish
• Silicone formulation
• 금형 온도
• 경화 조건
• 탈형
• 후처리

LSR is often preferred for precision products with smooth or detailed surfaces.

HCR is also suitable for:

• 무광 마감
• 질감이 있는 표면
• Glossy surfaces
• Functional industrial surfaces

For consumer products, mold texture can be used to create different visual and tactile effects.

11. Material Purity and Cleanliness

LSR is widely used in applications where cleanliness is important.

Because the material can be processed in a closed system, contamination risk can be reduced.

This makes LSR suitable for:

• 의료 제품
• 유아용품
• Food-contact parts
• Precision electronic components

HCR can also meet food-grade and medical-grade requirements when the correct silicone material and manufacturing controls are used.

The choice should be based on the actual material standard and application requirements.

12. Medical Applications

LSR is commonly used for medical silicone components.

대표적인 적용 분야는 다음과 같습니다:

• 의료용 밀봉재
• 밸브 부품
• 호흡기 구성 요소
• 착용형 의료 기기
• Silicone diaphragms
• Precision tubing connectors

LSR is suitable for medical projects because of:

• 높은 재현성
• Clean processing
• 자동화
• Biocompatible material options
• Precision molding capability

However, not every medical silicone product requires LSR.

HCR may also be used for larger or simpler medical silicone components.

Material certification and process validation are more important than simply choosing one molding method.

13. Baby Care and Food Applications

Both LSR and HCR are widely used in baby care and food-contact products.

LSR is often selected for:

• 젖병 젖꼭지
• 실리콘 밸브
• 젖꼭지 구성 요소
• Feeding components
• Precision sealing parts

HCR is commonly used for:

• 실리콘 치발기
• 실리콘 그릇
• Baby plates
• 실리콘 숟가락
• Silicone mats
• Larger molded baby products

For baby care products, important requirements may include:

• 식품용 실리콘
• BPA-free material
• 악취 제어
• 색상 일관성
• 표면 품질
• 손쉬운 세척

The best molding method depends on product structure and production volume.

14. Silicone Overmolding

LSR is especially suitable for automated overmolding.

It can be molded onto compatible substrates such as:

• PC
• PA
• PBT
• PPSU
• 스테인리스강
• 알루미늄
• Other engineered materials

LSR 오버몰딩은 다음 분야에서 사용됩니다:

• 의료기기
• 자동차 부품
• 전자 기기 하우징
• 방수 커넥터
• Handheld devices

HCR can also be used for overmolding, but the process is generally less automated.

If the project requires tight bonding control and high production consistency, LSR is often preferred.

15. Thin-Wall Products

Thin-wall silicone components are difficult to mold using high-viscosity materials.

LSR flows easily into thin sections.

따라서 다음 용도에 적합합니다:

• 얇은 막
• 유연한 밸브
• Small sealing lips
• Thin-wall covers
• Precision diaphragms

For very thin products, LSR usually provides better filling performance.

16. Large and Simple Silicone Products

HCR is often more economical for large silicone products with relatively simple structures.

예를 들면 다음과 같습니다:

• 실리콘 패드
• Silicone mats
• 대형 개스킷
• 보호 커버
• 산업용 부품

Using LSR for these products may not provide enough benefit to justify the higher tooling investment.

In such cases, HCR compression molding can offer a better balance between tooling cost and production cost.

17. LSR vs HCR Cost Comparison

The total cost should be evaluated based on the complete production program.

LSR

Typically offers:

• Higher tooling cost
• Higher automation
• 인건비 절감
• Shorter cycle time
• Better for high volume
• Good precision
• 뛰어난 재현성

HCR

Typically offers:

• Lower tooling cost
• 수작업 처리 증가
• Higher labor content
• Longer cycle time
• Good for low to medium volume
• Flexible manufacturing
• Good cost performance for simple products

A project with 1,000 parts may favor HCR.

A project requiring hundreds of thousands or millions of parts may benefit more from LSR.

18. Which Process Is Better for Prototypes?

For early-stage development and small production quantities, HCR compression molding is often easier to start with.

The lower tooling investment can reduce development risk.

However, if the final product will definitely use LSR during mass production, it may be better to develop the prototype using a process closer to the final production method.

This can help validate:

• Product shrinkage
• 금형 충진
• 표면 품질
• 이음선
• 탈형
• Material performance

The prototype strategy should match the final production goal.

19. Which Process Is Better for High-Volume Production?

LSR is generally more suitable for high-volume automated production.

Once the mold and process are validated, production can run with relatively little manual intervention.

This makes LSR attractive for industries such as:

• Medical
• 자동차
• 가전제품
• Baby care
• Industrial sealing

For very large volumes, the lower labor cost and higher productivity can significantly reduce unit cost.

20. How to Choose Between LSR and HCR

Before choosing the molding process, consider the following questions.

What Is the Estimated Annual Volume?

High-volume projects often favor LSR.

Lower-volume projects may favor HCR.

Is the Product Geometry Complex?

Thin walls, fine details, and microstructures may favor LSR.

Large and simple shapes may favor HCR.

What Is the Tooling Budget?

If the initial tooling budget is limited, HCR may be more practical.

Are Tight Tolerances Required?

Precision components may benefit from LSR.

Is Automation Important?

LSR is better suited to highly automated manufacturing.

Is the Product Used in Medical or Precision Applications?

LSR is commonly selected for these applications.

Is the Product Large?

Large silicone parts are often more economical with HCR.

21. LSR vs HCR Comparison Table

요인	LSR	HCR
Material Form	액체	Solid / Gum
Main Process	Injection Molding	Compression / Transfer Molding
금형 비용	더 높은	아래로
자동화	높음	Medium to Low
Labor Requirement	아래로	더 높은
생산량	Medium to High	Low to Medium
Thin-Wall Capability	훌륭합니다	Moderate
복잡한 기하학	훌륭합니다	좋아요
정밀도	높음	좋아요
플래시 제어	Very Good	Moderate
오버몰딩	훌륭합니다	가능함
Large Simple Parts	가능함	Very Suitable
Medical Applications	Very Common	가능함
Prototype Cost	더 높은	Usually Lower

22. Common Mistakes When Selecting LSR or HCR

One common mistake is choosing only based on mold price.

A lower mold price may look attractive at the beginning, but a labor-intensive process can become expensive during long-term production.

Another mistake is selecting LSR simply because it is considered more advanced.

LSR is not automatically the best choice for every product.

A large, simple silicone pad may be produced more economically using HCR.

The correct decision should balance:

• 금형 비용
• 단가
• 연간 물량
• 제품 형상
• 품질 요건
• 자동화
• Long-term production plan

결론

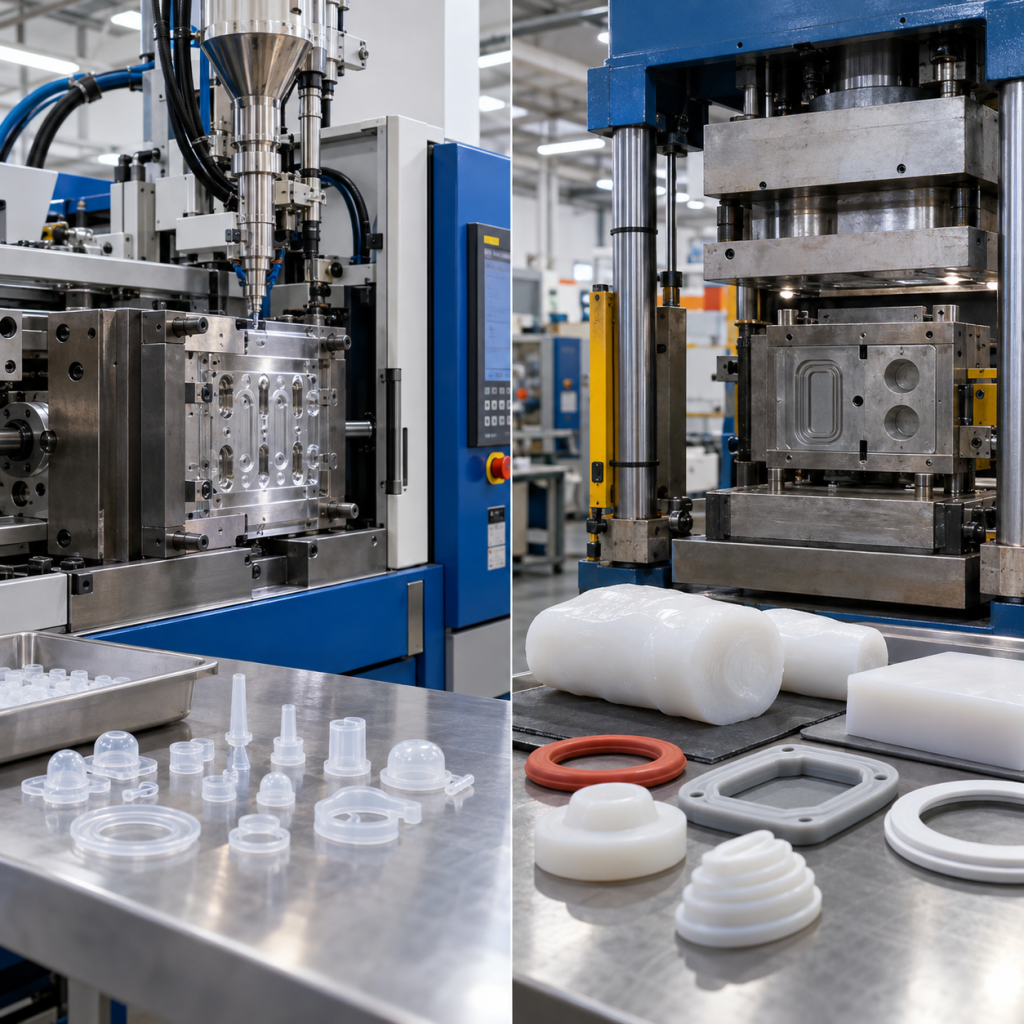

Both LSR and HCR are important silicone manufacturing technologies.

Neither process is universally better.

LSR is generally more suitable for precision, complex, thin-wall, high-volume, and automated applications.

HCR is often more suitable for simple, larger, lower-volume, and cost-sensitive products.

For a custom silicone project, the best process should be determined by the complete product requirements rather than material preference alone.

Fuhongying provides custom silicone molding, LSR injection molding, HCR compression molding, and silicone overmolding services for OEM and ODM projects.

We support applications in baby care, medical devices, consumer electronics, automotive components, sealing products, sports products, and industrial silicone components.

Send us your 2D drawing, 3D file, sample, estimated order quantity, and application requirements for a DFM review and quotation.

자주 묻는 질문

What is the main difference between LSR and HCR?

LSR is a low-viscosity liquid silicone that is normally injection molded. HCR is a high-viscosity solid silicone that is commonly compression molded or transfer molded.

Is LSR more expensive than HCR?

LSR normally requires more expensive tooling, but the automated production process can reduce labor and unit cost for high-volume production.

Which is better for small production quantities?

HCR is often more economical for low-volume or simple custom silicone products because compression tooling is generally less expensive.

Which silicone process is better for medical products?

LSR is widely used for medical components because it supports precision molding, automation, and clean processing. However, HCR can also be suitable depending on the product design and material requirements.

Which process is better for silicone overmolding?

LSR is commonly preferred for precision and automated silicone overmolding, especially for plastic, metal, medical, automotive, and electronic components.

Can both LSR and HCR use food-grade silicone?

Yes. Both LSR and HCR materials can be supplied in food-grade formulations. The correct material should be selected according to the required food-contact regulations and application conditions.
