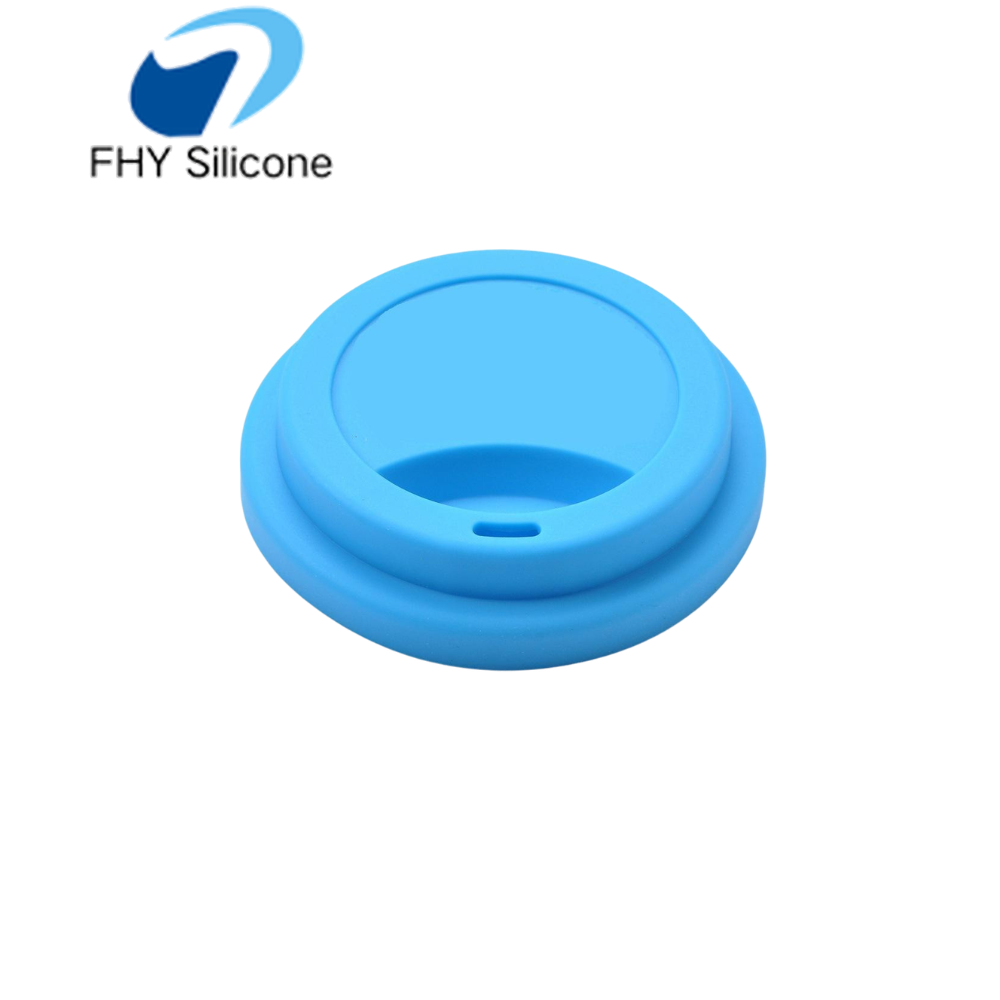

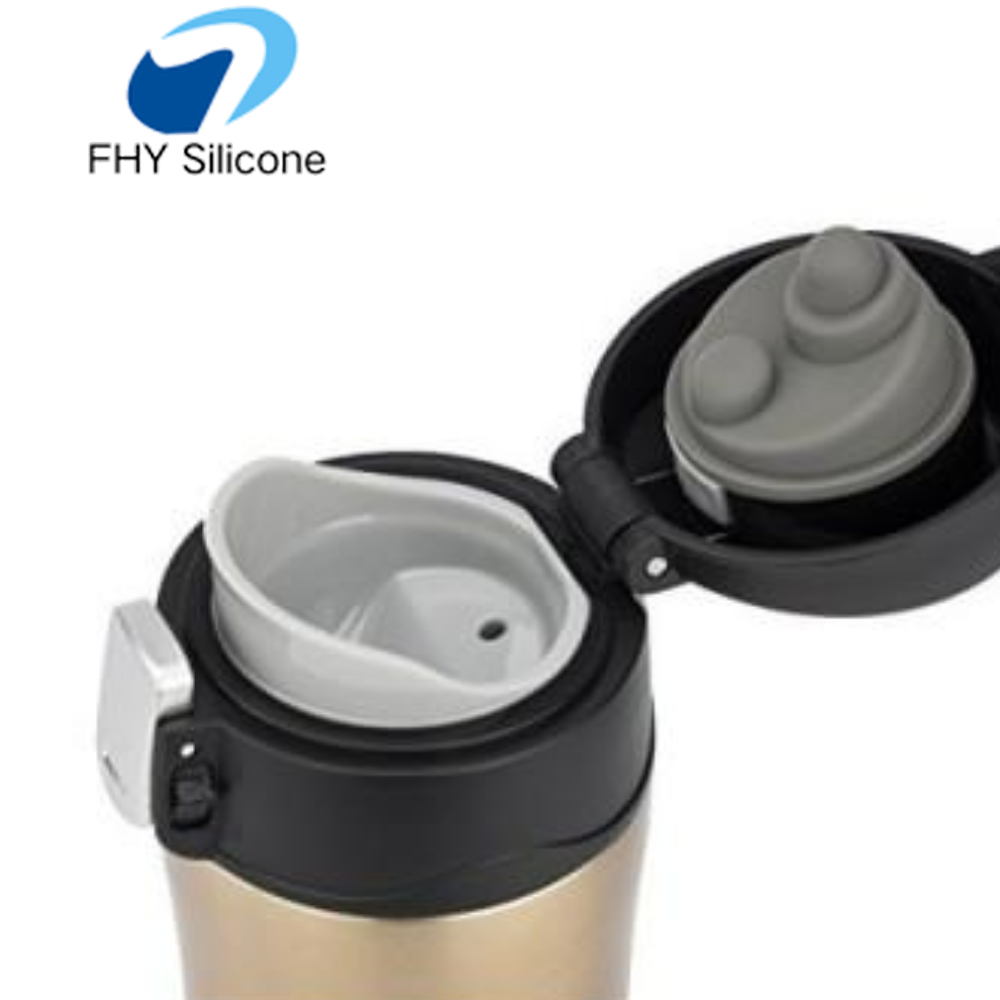

The integrated LSR overmold lid is a high-end drinking lid structure manufactured using liquid silicone rubber (LSR) overmolding technology combined with PC, PP, or other engineering plastics.
This design replaces traditional multi-component lid assemblies by integrating sealing, opening, and flow-control functions into a single overmolded structure.
The result is a fully integrated lid system with enhanced sealing reliability, improved durability, and simplified assembly for modern drinkware products such as thermos bottles, sports bottles, and travel mugs.
Key Features and Advantages
Fully Integrated One-Piece Structure
LSR overmolding eliminates the need for multiple sealing parts and assembly steps.
- No separate O-rings required
- Reduced component complexity
- Improved production consistency
Excellent Sealing Performance
The LSR material forms a tight, continuous sealing layer.
- Leak-proof design
- Stable pressure sealing
- Suitable for inverted and portable use
Soft-Touch and User-Friendly Design
Silicone provides a comfortable tactile experience.
- Smooth and soft operation
- Ergonomic drinking experience
- Noise-free opening and closing
High Temperature Resistance
Designed for both hot and cold beverage applications.
- Operating temperature: -40°C to 200°C
- Suitable for hot water and boiling liquids
- Dishwasher safe design capability
Food Grade Safety
Medical and food-grade LSR options are available for beverage applications.
- FDA / LFGB compliant materials
- Non-toxic and odorless
- Safe for repeated contact with drinking water
Improved Durability and Reliability
The integrated structure reduces failure points.
- No loose seals or assembly gaps
- Long service life under repeated use
- High resistance to fatigue and aging
Manufacturing Process
The integrated LSR overmold lid is produced using precision injection molding technology:
- Base Structure Molding
PC, PP, or similar engineering plastic is molded into the rigid lid structure. - Surface Preparation
Surface treatment ensures strong bonding between plastic and silicone. - LSR Overmolding Injection
Liquid silicone rubber is injected to form sealing and functional zones. - Thermal Curing
Silicone is vulcanized to create a permanent bonded structure. - Final Assembly Testing
Sealing, actuation, and durability tests are performed.
Technical Specifications
| Item | Description |
|---|---|
| Product Name | Integrated LSR Overmold Lid |
| Material System | LSR + PC / PP / Engineering Plastics |
| Process | Two-shot Injection Molding |
| Function | Sealing / Opening / Flow control |
| Temperature Range | -40°C to 200°C |
| Structure Type | One-piece integrated lid |
| Certification | FDA / LFGB (optional) |
| Color Options | Customizable |
| Application Type | Drinkware sealing system |

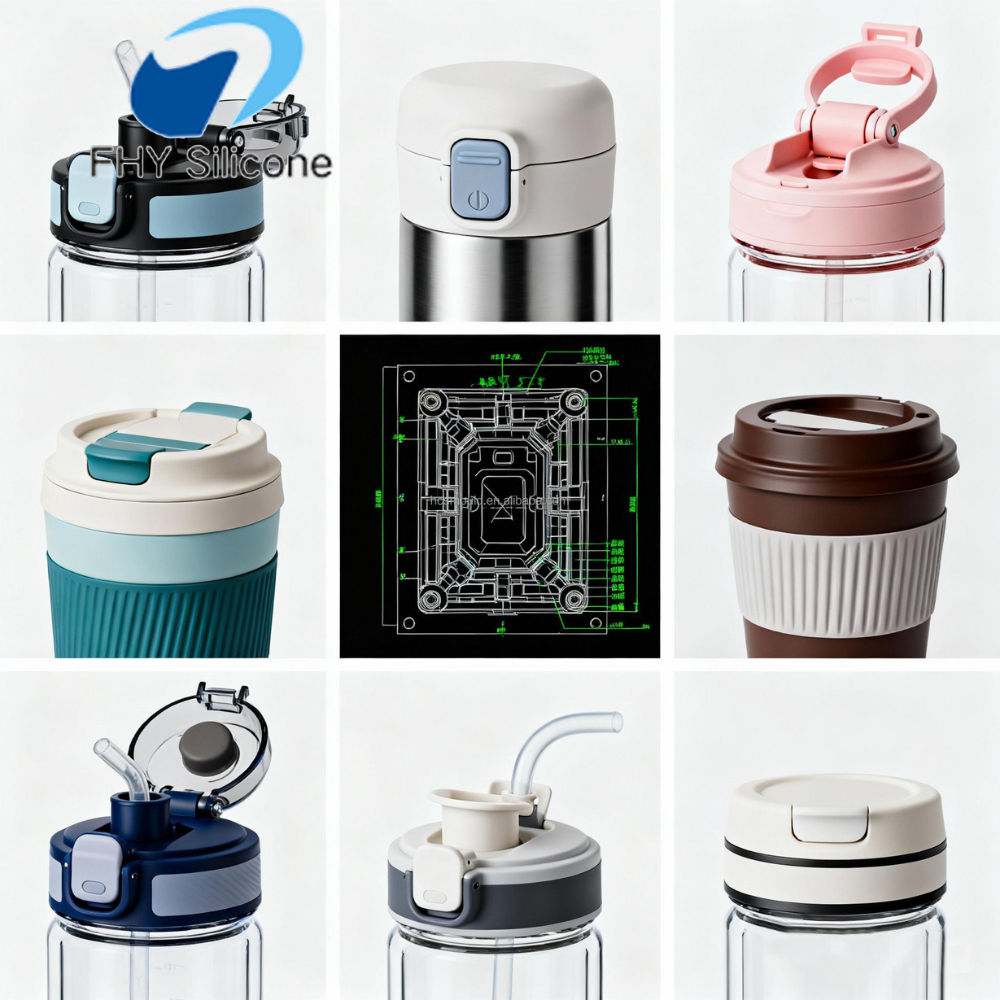

Applications
- Thermos and insulated bottles
- Sports water bottles
- Travel mugs and tumblers
- Baby drinking systems
- Outdoor hydration products
- Coffee and beverage containers
- High-end reusable drinkware
Engineering Considerations
LSR and Plastic Bonding
Strong adhesion is achieved through:
- Surface activation or plasma treatment
- Specialized self-bonding LSR materials
- Controlled mold temperature design
Structural Optimization
The integrated design must balance:
- Sealing performance
- Opening mechanism reliability
- Long-term fatigue resistance
Material Safety and Compliance
All materials can be selected for:
- Food contact compliance
- High temperature resistance
- Long-term stability in beverage use
Frequently Asked Questions
What is the advantage of an integrated LSR lid?
It reduces assembly parts, improves sealing reliability, and enhances overall durability.
Does it still require a sealing ring?
No, the LSR overmolding replaces traditional sealing rings with a one-piece structure.
Can it handle hot water?
Yes, it can withstand temperatures up to 200°C depending on material selection.
Can the design be customized?
Yes, structure, function, hardness, and color can all be customized.
