Custom Double-Hole Silicone Positioning Pad – Shock-Absorbing Mounting Spacer and Protective Cushion

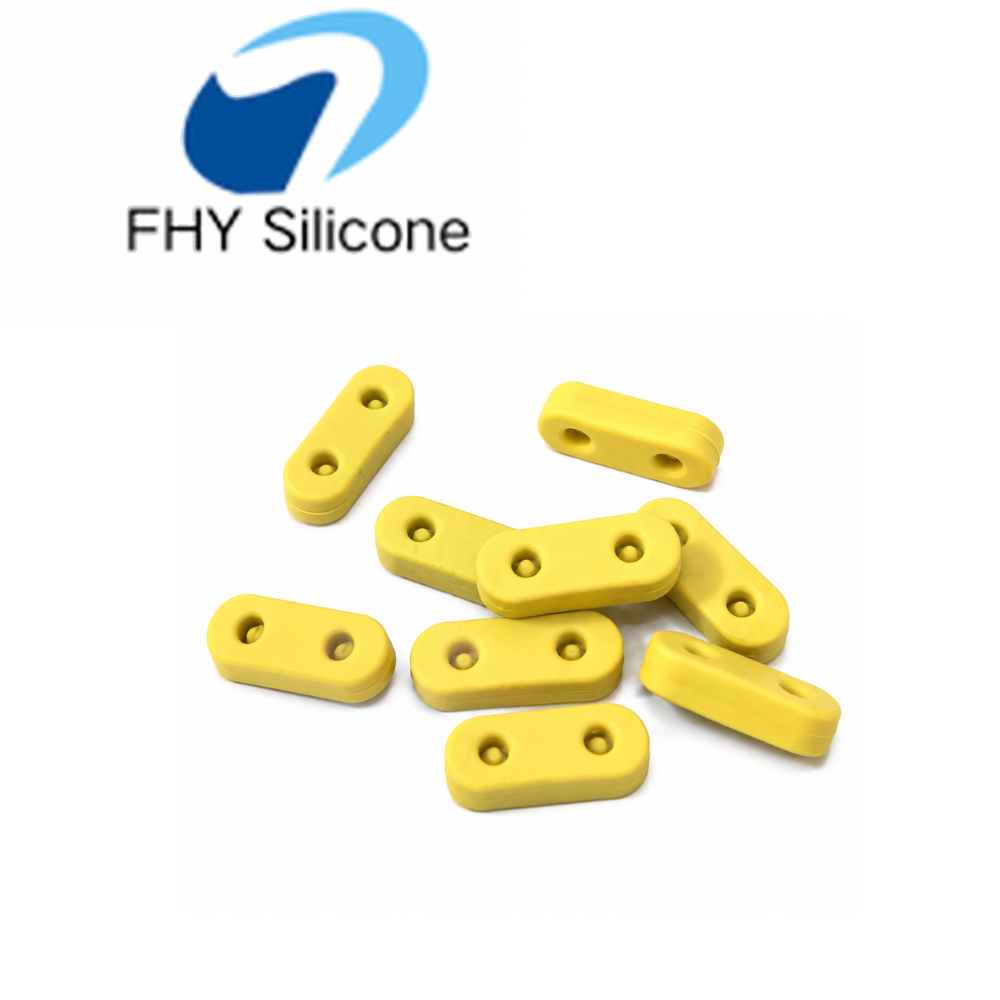

The Double-Hole Silicone Positioning Pad is a molded silicone component designed for accurate installation, vibration reduction, impact cushioning, anti-slip support, and surface protection. It features an elongated body with rounded edges and two symmetrically arranged mounting holes. This practical structure allows the pad to be installed with screws, pins, posts, rivets, or other fastening components.

The silicone pad can be placed between metal, plastic, glass, wood, painted surfaces, or other rigid parts to create a flexible protective layer. It helps reduce direct contact between connected components and may minimize scratches, friction marks, vibration, impact, and unwanted operating noise. The product can be used as a positioning pad, mounting spacer, protective cushion, vibration isolator, anti-slip insert, or assembly buffer.

Its dimensions, hole structure, silicone hardness, color, surface finish, and material properties can be customized for different OEM and ODM applications.

Symmetrical Double-Hole Positioning Design

The two mounting holes are positioned symmetrically to provide convenient and repeatable installation. Compared with a single-hole pad, the double-hole design helps prevent unwanted rotation and movement after assembly. It also distributes the fastening force across two positions, helping the silicone pad remain stable during use.

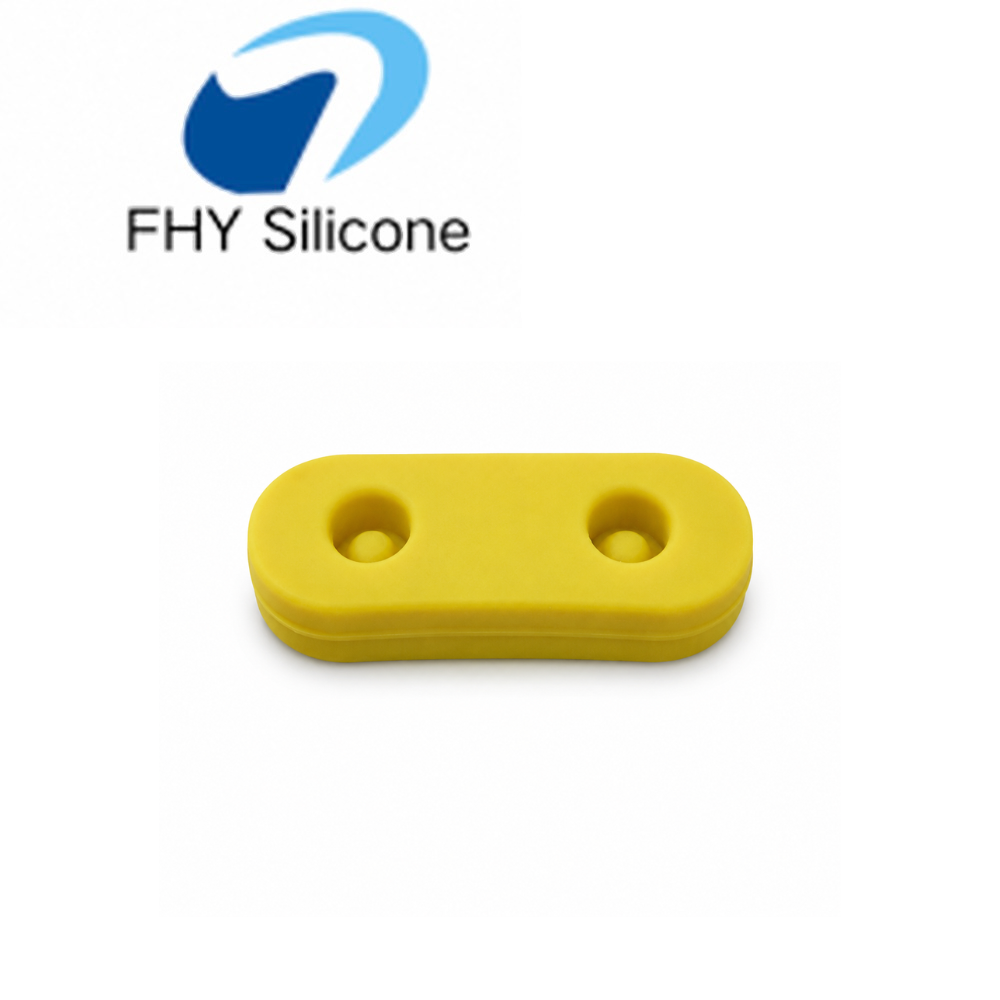

The product shown features recessed areas around the mounting holes. This structure can accommodate selected screw heads or fastening parts and may help create a cleaner, more secure assembly. Hole diameter, hole spacing, recessed depth, edge distance, and opening shape can all be modified according to the customer’s hardware and product structure.

The holes may be produced as straight through-holes, recessed holes, countersunk holes, stepped holes, blind holes, oval holes, or other customized designs. Customers are encouraged to provide the screw size, fixing method, and mating-part dimensions so that the hole structure can be evaluated before mold production.

Shock Absorption and Vibration Reduction

Silicone is flexible and resilient, making it suitable for applications that require repeated compression and cushioning. When installed between two components, the positioning pad can absorb part of the impact energy and reduce the transmission of vibration.

The soft silicone body helps distribute local pressure over a wider area and reduces concentrated stress around the fastening points. This is especially useful for assemblies where hard components may otherwise rub, strike, or vibrate against each other.

The pad may also reduce rattling and noise in machinery, electronic equipment, household appliances, furniture, and vehicle components. Its actual cushioning performance depends on the silicone hardness, pad thickness, contact area, fastening pressure, and working load. These factors can be adjusted according to the intended application.

Soft and Protective Contact Surface

The rounded edges and smooth silicone surface provide gentle contact with surrounding components. Unlike rigid plastic or metal spacers, the silicone pad can deform slightly under pressure and return toward its original shape when the load is removed.

This flexible contact helps protect painted, coated, polished, or decorative surfaces from scratches and abrasion. It may also improve grip between components and reduce movement on smooth surfaces. A matte, textured, or patterned finish can be added when additional friction is required.

Different silicone hardness levels are available. Softer silicone provides better conformity and cushioning, while higher-hardness silicone provides stronger support and improved dimensional stability. The appropriate hardness should be selected according to the assembly pressure, product weight, required compression, and operating conditions.

Robustes Silikonmaterial

The Double-Hole Silicone Positioning Pad can be manufactured using silicone compounds selected for different performance requirements. Silicone offers good flexibility, weather resistance, electrical insulation, and resistance to many temperature changes. It can be used in indoor products and selected outdoor environments when a suitable material formulation is chosen.

Depending on the silicone grade and actual operating conditions, customized compounds may support a typical temperature range of approximately -60°C to 200°C. Actual temperature performance depends on the material formulation, product dimensions, mechanical load, contact media, exposure time, and testing conditions. Final specifications should be confirmed through sample testing before mass production.

For applications requiring special properties such as flame resistance, antistatic performance, electrical conductivity, oil resistance, or compliance with a specific industry standard, customers should provide the relevant technical requirements during the inquiry stage.

Fully Customizable Product Specifications

This silicone positioning pad is available as a custom-molded component. The overall length, width, thickness, corner radius, hole diameter, hole spacing, recessed area, and surface structure can be designed according to the customer’s product.

Available colors include black, white, gray, yellow, blue, red, green, translucent, and other customized colors. A specific color can be matched using a reference number or physical color sample. Multiple colors may also be used to identify different sizes, models, or assembly positions.

The surface can be produced with a smooth, matte, frosted, textured, or patterned finish. Molded logos, product numbers, directional marks, and identification symbols may be added when the product dimensions allow. Bulk packaging, individual packaging, and customized labeling are also available according to purchasing requirements.

Breites Anwendungsspektrum

The Double-Hole Silicone Positioning Pad is suitable for electronic devices, mechanical equipment, automotive components, household appliances, furniture fittings, lighting products, measuring instruments, sports equipment, industrial brackets, pipe-mounting systems, and customized consumer products.

It may be installed beneath a metal bracket, between connected housings, under an equipment base, around a mounting frame, or at a repeated contact point. The pad can also be used to compensate for small assembly gaps, isolate hard materials, protect contact surfaces, and improve the stability of a finished product.

Because different applications involve different loads and assembly conditions, customers should provide information about the mounting surface, fastening method, expected pressure, operating temperature, contact materials, and environmental exposure. This helps determine the appropriate structure, hardness, thickness, and silicone formulation.

OEM and ODM Manufacturing Support

We support custom silicone manufacturing from initial product evaluation through mold development, sampling, inspection, and volume production. Customers may provide a 2D drawing, 3D model, physical sample, product photo with dimensions, or a description of the assembly requirements.

Prototype samples can be produced to verify the outside dimensions, hole position, screw fit, silicone hardness, color, surface finish, cushioning performance, and actual installation result. Adjustments can be made after sample evaluation before the final mold and production specifications are confirmed.

To request a quotation, please provide the required length, width, thickness, hole diameter, center-to-center spacing, silicone hardness, color, estimated order quantity, and application details. We can then evaluate the design and recommend a suitable customized silicone positioning pad for your project.
